Specifications

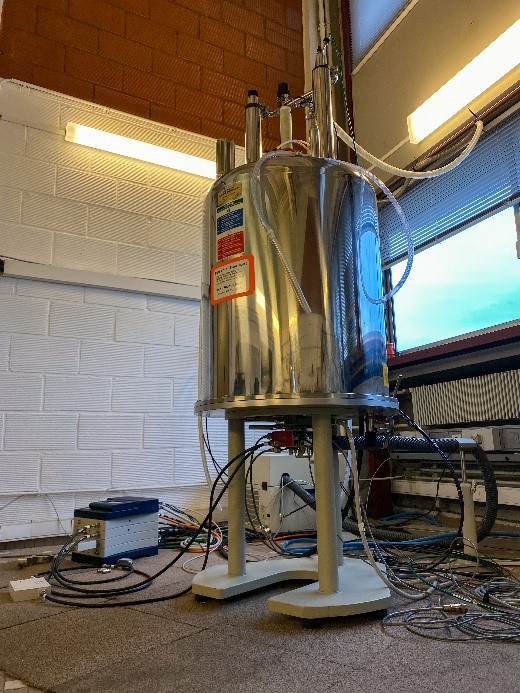

Wide-Bore 7.1 T magnet (89 mm).
Avance III HD console with 3 emission channels.
Linux-based processing workstation with Topspin 3.2.
Application
Used for liquid and solid-phase NMR and high-temperature measurements.
Equipment available on reservation
Accessories
- BBO 5 mm probe: dual resonance, 1H, 2H and X nuclei, direct detection of heteronuclei, Z gradients 50 G/cm
- BBI 10 mm probe: dual resonance, 1H, 2H and X nuclei, inverse heteronuclei detection
- SEI HT 5 mm probe: dual resonance, 1H, 2H and 13C nuclei, inverse heteronuclei detection, high temperature (up to 600°C)
- MASVTN 2.5 mm probe: dual resonance, 1H and X nuclei, rotation speed: 35 kHz
- MASDVT 4 mm probe: triple resonance, 1H, X and Y nuclei, rotation speed: 15 kHz
- BCU-05 air cooler
